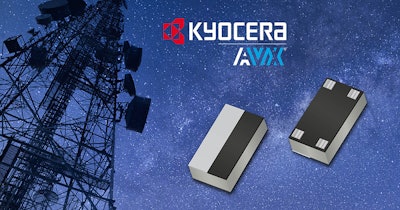

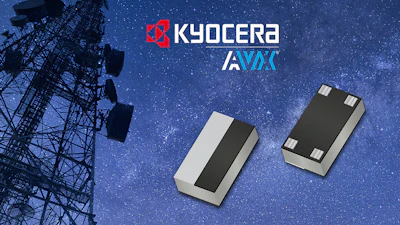

Kyocera AVX CP2816 High-Directivity Couplers.
Kyocera AVX
Recently, KYOCERA AVX (FOUNTAIN INN, S.C.) released the CP2816 Series integrated thin film (ITF) high-directivity couplers for high-frequency wireless systems.
The CP2816 Series is designed to provide compact, high-power coupling solutions for VHF and UHF wireless communication systems across various markets.
Features & Benefits:
- Compact 2816 (7×4mm) case with low-profile packaging
- 20W continuous power handling
- Operating frequency range from 225–750MHz
- Operates in temperatures from -40°C to +105°C
- 50Ω impedance with a voltage standing wave ratio (VSWR) of 1.3
- Tight coupling factor options: -10±1.2dB, -10±2dB, -15±2dB, and -15±4dB
- Insertion loss: less than -0.8dB to less than -0.9dB
- Directivity of -14dB
- High temperature stability
- High lot-to-lot and part-to-part reliability
- Consistent RF performance
- Nickel LGA terminations with lead-free solder coating
- Compatible with reflow, wave, and vapor phase soldering
- Packaged on tape and reel
RoHS compliant, IATF 16949 compatible, and manufactured in an ISO-9001 facility. Suitable for telecommunications, commercial aerospace, military and defense, and automotive sectors. Applications include active antennas, base stations, VHF/UHF radios, radar systems, mobile tactical radios, emergency systems, and RF test equipment.
For more information, visit KYOCERA AVX.
