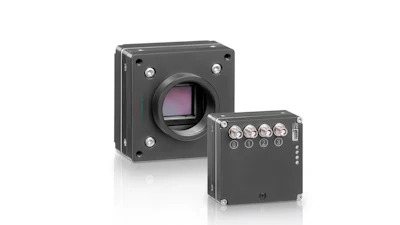

Allied Vision (Germany) is launching a new FXO camera series with 4-Channel CoaXPress-12 interface, featuring the 24.6 Megapixel fxo935xCX12-4C and the 12.4 Megapixel fxo936xCX12-4C.
Available immediately, the cameras are among the first to integrate the latest Sony Pregius S BSI global shutter sensors IMX935 and IMX936 and deliver data rates of up to 50 Gbit/s via four CoaXPress-12 connections.
Designed for demanding, space-constrained vision systems, the new FXO CXP cameras provide high-resolution, high-frame-rate imaging with fanless, vibration-free passive cooling enabling reliable operation from -10°C to +60°C (14°F to 140°F) in electronics manufacturing, semiconductor, automotive, metrology, medical, and pharmaceutical applications.
The FXO CXP-12 (4 connections) series delivers imaging performance in a housing with a 50 × 50 mm footprint, minimizing system size without compromising throughput or image quality.
With power consumption of only 9W, the platform is efficient and enables a fanless, passively cooled design, therefore eliminating vibration, reducing maintenance, and ensuring stable operation, particularly in cleanroom environments.
Power-over-CXP reduces system complexity by eliminating external power supplies and cutting cabling effort.
The FXO cameras are engineered for applications where fine details, high tact rates, and tight installation spaces come together.
In electronics and semiconductor production, they are ideally suited for 2D/3D Automated Optical Inspection (AOI), semiconductor assembly verification, SMT pick-and-place alignment, and high-resolution PCB inspection. They also enable fast and precise 3D laser triangulation and structured light imaging for detailed surface and shape analysis.
In automotive and industrial metrology, the cameras support 2D/3D material inspection, as well as high-precision measurement of strain, deformation, and displacement, and are excellent for particle image velocimetry.
Features include:
fxo935CX12-4C/fxo935MX12-4C:
- Resolution: 24.6 MP (5,328 × 4,608)
- Sensor: Sony IMX935, BSI global shutter (Type 1.2, 19.3 mm diagonal)
- Frame rate: up to 192 fps @ 8-bit
fxo936CX12-4C/fxo936MX12-4C:
- Resolution: 12.4 MP (4,128 × 3,008)
- Sensor: Sony IMX936, BSI global shutter (Type 1/1.1, 14 mm diagonal)
- Frame rate: up to 339 fps @ 8-bit
Both models share the same ultra-slim mechanical platform with dimensions of 50 × 50 × 19 mm (Flat Front) or 50 × 50 × 34 mm (C-Mount), and feature:
- Interface: CoaXPress 2.0 (CXP-12), 4 connections (up to 50 Gbit/s)
- Power: Power-over-CXP with 9W power consumption
- Cooling: Passive, fanless cooling for vibration-free operation
- Image formats: Monochrome and color variants
- Lens mounts: Modular concept with Flat Front and C-Mount options
- Operating temperature: -10°C to +60°C with full 4-channel CXP-12 performance
For more information, visit www.alliedvision.com.
